Leveraging device capabilities

This topic is part of our Android Application Development training

In Android, an Intent is a message which allows you to request functionality from other Android components, whether those components are from the same application or from a different one. An intent can be used for instance to open an activity from the same app or to open an activity from another app.

20150827-song-explorer-v7

SongExplorerForAll v7

In SongExplorerForAll v6, we created an about menu in the action bar. Here, clicking on the about menu displays a dialog which gives information about the app.

When creating an intent, we have to specify the type of action to perform. Here, we use ACTION_VIEW which is basically used when we need to display data to the user.

20150827-song-explorer-for-all-v8

SongExplorerForAll v8

Another type of action is ACTION_SEND. This is used when we want the user to be able to share some data through another app. In SongExplorerForAll v8, when the user clicks on the share icon in the action bar, the latter will be able to share information about the Song Explorer For All app. The user is presented with a list of apps which can perform the sharing action (e.g. Gmail), from which he/she can choose.

There are two types of intents namely explicit intents and implicit intents. When using explicit intents, we have to explicitly specify the component to start by name. On the other side, when using implicit intents, we simply declare the action to perform. The Android system then finds appropriate component(s) to handle the intent. If there are several apps which can handle the intent, we can show a chooser dialog.

SongExplorerForAll v9

In Android, Content Providers allows applications to share and use data across the platform. Android has a number of built-in providers for the data stored on the phone: e.g. contacts, call logs, media files and settings. In SongExplorerForAll v9, when the user clicks on the share icon, the latter can select a picture on his/her phone which will be sent as part of the data being share. This is done by:

  • Using an intent of action type ACTION_PICK to access the MediaStore
  • Handling the data returned, which is basically the URI of the image selected by the user, in the onActivityResult() method
  • Adding the image URI (Intent.EXTRA_STREAM) to the ACTION_SEND intent
This topic is part of our Android Application Development training

Implementing effective navigation

In order to provide a good user experience, one of the most important steps in designing and developing an Android application is to determine how the user will navigate the app. You should start by designing the screens hierarchy to clearly show the relationship among different screens. Then, decide on how to effectively traverse your content.

Android provides various navigation paradigms such as tabs, navigation drawers and up and back navigation. It is important to understand the best practices associated with those paradigms in order to provide a coherent navigation experience for users. Always remember that users expect similar components to behave in similar ways. Following best practices will avoid your users from getting lost and will make using your app easier.

20150826-song-explorer-for-all-v4

SongExplorerForAll v4

One common pattern found in almost all Android applications is the navigation drawer. A navigation drawer is basically a panel which is revealed when the user swipes from the left edge of the screen (although a navigation drawer can also be found on the right). It generally displays a list containing the main top-level navigation options. In SongExplorerForAll v4, we add an empty navigation drawer to the app.

This is done by declaring a DrawerLayout as the root view layout of our Main Activity.

SongExplorerForAll v5

The SongExplorerForAll app displays a list of top artists worldwide. However, the Last FM Api also allows us to query a list of top artists based on top charts for a particular country (For example, the top chart artists in France might be different from the top chart artists in Spain). In SongExplorerForAll v5, we give the user the option to choose between either to display the top artists worldwide or to display the top artists based on top charts for Mauritius. The user chooses between those two top-level options via the navigation drawer. To achieve this we need to do the following:

  • Create the appropriate url to query the top chart artists for a particular country
  • Populate the list in the navigation drawer with the two values Top Artists Worldwide and Top Artists in Mauritius. Here, since there are only two items, it is not necessary to use a RecyclerView. A ListView with a simple ArrayAdapter is enough.
  • On selecting one of the two items from the ListView, we need to get a reference to the ArtistListFragment being displayed and update it accordingly. Getting a reference to the fragment is done by first adding a tag to the fragment on creation and then using this tag to access it.

SongExplorerForAll v6

Another key component for navigating an Android app is the action bar. The action bar is located at the top of the screen and basically is used for

  • Branding purposes (includes the application name, logo and branding color)
  • Making important and commonly used actions prominent and easily accessible
  • Ensuring consistent navigation together with tabs

In Android 5.0 Lollipop, the Toolbar was released which is basically a generalization of the action bar. While the action bar is part of the activity window, the Toolbar can be placed anywhere within a layout. A Toolbar can be set as the action bar using the setActionBar() method.

In SongExplorerForAll v6, we add a Toolbar to the Main Activity and set it as the action bar. We then add two menu elements, share and about. The share menu is displayed as a share icon in the Toolbar while the about menu is displayed when the user clicks on the more button (three vertical dots) in the action bar. When adding an icon, it is important to provide resources for the different density buckets (mdpi, hdpi, xhdpi, xxhdpi etc.) in order to ensure good graphical quality and performance on all screen densities.

Finally, we also add the drawer indicator in the action bar.

20150826-song-explorer-forall-v6

Optimising for tablets

This topic is part of our Android Application Development training

We have seen previously various best practices (such as using match_parent and wrap_content) for supporting different screen sizes. Android also allows us to provide several alternative layouts to target different screen configurations.

For example, let say we have an activity whose layout, found in the res/layout folder, is called activity_details.xml. This layout would be used for any device. However, Android allows us to create another folder, res/layout-large, in which we can have a different implementation of activity_details.xml. For example, in the activity_details.xml file found in res/layout, we can have an image whose width has been set to 100dp and in the activity_details.xml file found in res/layout-large, we can have an image whose width has been set to 200dp. In such a case, the activity_details.xml file found in res/layout-large would be selected on devices with screens classified as large.

Now, using the large size qualifier also has some limitations. Instead, we can use smallest-width qualifiers which allows us to specify specific screen sizes. For example, we can place the activity_details.xml file in the folder res/layout-sw600dp. Resources found in this folder would be used by devices whose smallest width is 600dp or more. Android also allows us to use orientation qualifiers such as res/layout-land where resources found in that folder would be used by devices in landscape mode.

Using the above mentioned qualifiers together with fragments, we can implement optimised and dynamic user interfaces which will adapt to different screen configurations quite easily.

20150825-song-explorer-for-all-v3

SongExplorerForAll v3

In SongExplorerForAll v2, we used fragments to replace activities. In SongExplorerForAll v3, we create the new folder res/layout-sw600dp and add a different implementation of activity_main.xml in it to be used by screens whose smallest width is 600dp or more.

We also modify our MainActivity to display the appropriate fragments and perform appropriate tasks depending on whether the device has a larger screen. The result is that on smartphones, users get a list of artists and when selecting one of the artists get the artist’s details in another screen. On tablets, the list of artists and the artist’s details are displayed side by side.

This topic is part of our Android Application Development training

Building a dynamic user interface

This topic is part of our Android Application Development training

Till now, we have seen how to use layouts and activities to implement different screens. Basically an activity takes several views, arrange them according to a specific layout and manage their behaviour as well as the application flow. Since so far we’ve developed applications for smartphones, activities were perfectly fine. However, once we want to optimise our application for tablets, activities can have various limitations.

When dealing with larger screens, designing user interfaces get a little bit more tricky. By using the same user interface for let say a 4 inch smartphone and a 10 inch tablet, a developer would not make optimum use of the space available on the screen.

20150825-song-explorer-v11-tablet

If we have a look for instance at the SongExplorer v11 app on a 10 inch tablet, we can see that there’s a lot of space which is wasted on the right in the list of artists. One way to optimise the user interface for the tablet would be to use half of the screen for displaying the list of artists and use the other half for displaying the artist details such as the picture and tracks.

Unfortunately, since we have created the two screens using activities, this would require some complicated logic. Activities require full screen control when active and only one activity can be displayed on the screen at a time.

To address this issue, Fragments were introduced. Fragments not only can use a portion of the screen but also allow logic to be encapsulated into smaller building blocks and be reused. Fragments can be added statically to the UI but also dynamically to support different screen configurations.

SongExplorerForAll v1

In SongExplorerForAll v1, we implement the screen showing the list of artists and the screen showing the artist details using fragments instead of activities.

It is important to understand that fragments can only exist within a parent activity so we still need our MainActivity. We add the ArtistListFragment dynamically using a FragmentManager and FragmentTransaction.

You’ll notice here that on selecting a particular artist from the list, the artist details still open in a new activity since for now we haven’t told the application to replace the ArtistListFragment with the ArtistDetailsFragment. We are going to do that in the next version.

SongExplorerForAll v2

In order for fragments to be fully reusable, they should be built in such a way so as to be completely self-contained while at the same time being able to work with other components of the user interface. For instance, we should be able to reuse the ArtistListFragment in another application. However, while in the SongExplorerForAll v2 app the ArtistListFragment might need to communicate with the ArtistDetailsFragment, ArtistDetailsFragment might not necessarily be present in another app. This is why fragments should not communicate directly among each other. All communications among fragments should be performed through the parent activity.

In SongExplorerForAll v2, when an artist is selected from the list, it has to send this information to the ArtistDetailsFragment so that the latter updates itself accordingly. The information is first sent to the containing activity which then takes the appropriate action and passes the information to the ArtistDetailsFragment. This is done by creating an interface in the ArtistListFragment and implementing it in MainActivity.

This topic is part of our Android Application Development training

systemd for Linux system administrators

20150825-systemd

According to Wikipedia, “systemd is a suite of system management daemons, libraries, and utilities designed as a central management and configuration platform for Linux”. systemd replaces a collection of existing subsystems, most notably the SysV init. systemd was initially developed by Lennart Poettering and Kay Sievers.

Lennart Poettering has written a number of insightful and very interesting posts on systemd which I would like to share with you all:

systemd has been adopted by a number of major distributions including Red Hat Enterprise Linux, CentOS, Fedora, Debian, Ubuntu, Arch, Gentoo and openSUSE.

Naturally, we cover systemd in our Linux courses.

Have fun learning systemd.

Asynchronous networking

This topic is part of our Android Application Development training

While accessing data found on the device (data stored in an SQLite database, data stored on internal storage, data stored on external storage or data stored in Shared Preferences) might be fine for some apps, very often, an app might need to send and receive data from a remote server. The data can be either a plain text, XML, JSON or image.

When developing an Android application, we should avoid performing long running operations on the UI thread as this could result in a poor user experience. Sending a request and waiting for the response might take time and thus, as of Android 3.0, the Android system will crash if a network request is made within the UI thread. One way of dealing with network requests is therefore to use AsyncTask which basically allows you to implement multi threading and to perform background operations outside the UI thread. The results are then passed back to the UI thread. Using AsyncTask can however be tedious as you have to do a lot of things manually such as writing code to access the network.

Recently, Google has released a new framework called Volley which handles a lot of the tedious work for you. It also offers various advantages over AsyncTask such as caching, retry mechanism and various request types.

LastFMApp

Last FM, a popular music website, provides the Last.fm API which allows developers to build programs using Last FM data which includes details about artists and tracks among others. Once you create an API account and get an API key, the Last.fm API is free to use. The web service allows you to call methods that respond in REST style XML or JSON format.

Here, we use Volley and send a request to Last.fm API to get a list of top chart artists. The response obtained will be a JSON object which we display in a simple TextView.

When using Volley, network operations are managed by a RequestQueue to which you pass request objects.  A recommended practice is to create the RequestQueue as a singleton, thus ensuring that the RequestQueue lasts the lifetime of your app.

Also, in order for an application to be able to access the network, we should add the android.permission.INTERNET permission in our AndroidManifest.xml file.

LastFMAppReloaded

Now that we have a JSON object response, we need to parse it and retrieve data that is of interest to us. In LastFMAppReloaded, we retrieve the name of the first artist returned in the JSON response and display it in a TextView.

For this, we use the JSONObject and JSONArray classes and some of their methods such as getJSONObject() and getJSONArray().

20150824-last-fm-app-with-image

LastFMAppReloadedwithImage

The Last FM Api also returns the urls for pictures of the different artists. In LastFMAppReloadedwithImage, we also retrieve the image for the first artist returned in the JSON response.

In Volley, this is pretty straight-forward using the ImageLoader class and the NetworkImageView component.
20150824-song-explorer-v9

Song Explorer v9

Previously, we created the Song Explorer app which basically retrieved a list of artists from a database and displayed it in a listview (RecyclerView). Then on selecting one of the artists, we could get more information about that artist as well as a list of tracks for that particular artist.

Now that we know how to perform network requests with Volley, in Song Explorer 9, we’ll retrieve the list of artists from the Last FM web service instead of from the database.

You’ll notice that selecting a particular artist from the list returns an error. This is because the artist id we used in the database is different from the artist id used by the Last FM api. We’ll fix that in Song Explorer v10.

Song Explorer v10

The Last FM Api also has a method which allows us to retrieve a list of top tracks for a particular artist. In Song Explorer v10, when selecting a particular artist from the list, we are redirected to another activity just like in the previous versions of Song Explorer but this time, we display the artist name, the artist image and a list of top tracks for that artist.

Song Explorer v11

Finally, just like we did for the ForexWithStyle app, we’ll modify the style and add some colors to the Song Explorer app.

20150824-song-explorer-v11

This topic is part of our Android Application Development training

Lists and Adapters

This topic is part of our Android Application Development training

Data-centric applications normally have to display a lot of information and Android has two important widgets which can be used to display a lot of information in a small space:

  • Spinner: We have used a spinner when developing the Forex app previously. We have seen how it needs an adapter to display its data.
  • ListView/RecyclerView: This is a scrollable list of items which can be clicked on. ListViews/RecyclerViews also require an adapter to work.

In the previous lesson on databases we developed the Song Explorer app which basically retrieves a list of artists and tracks from a database and displays it on the screen using a TextView. However, using a TextView for this purpose has some limitations. For instance, we cannot select one specific item and click on it to get more details. The best way to display a list of items in Android is to use a ListView/RecyclerView.

ListView vs RecyclerView

When using lists to display data, you need to get references to each view component for each item in the list. If your list has only a few items that’s fine but if your list has let say hundred items, repeatedly calling findViewById() can slow down performance and as a result the scrolling experience won’t be smooth. To address the issue, it is recommended to use a pattern called the ViewHolder pattern which basically recycles views when they go out of the screen when you scroll. So instead of creating new view components for each item in the list, we reuse those which are not displayed on the screen.

Previously, one could make ListView scrolling smooth by implementing the ViewHolder pattern in the corresponding ListView adapter. However, this was an optional thing. With the advent of Android Lollipop, RecyclerView was introduced. RecyclerView is a much more powerful, flexible and a major enhancement over ListView. For instance, RecyclerView makes the use of ViewHolder compulsory using the RecyclerView.ViewHolder class. It also has additional functionalities for item animation and item decoration among others.

Song Explorer v4

20150820-song-explorer-v4

Here, we’ll develop version 4 of the Song Explorer app. Instead of displaying the list of artists in a TextView, we’ll display it using a nice RecyclerView. For that, we’ll also have to create ArtistAdapter class which will extend RecyclerView.Adapter.

Song Explorer v5

Till now, we have only displayed the artist name. However, in the database, we also have the artist id and the artist bio. In Android, it is possible to customise lists to display more than one piece of information for each item in the list. For example, for one item, we can display a thumbnail image to the left and other pieces of information to the right of the image. In version 5 of the app, we learn the basics of creating custom lists by displaying the artist id together with the artist name.

Song Explorer v6

20150820-song-explorer-v6

In version 5 of the Song Explorer app, we have a nice RecyclerView displaying a list of artists which includes the artist’s id and the artist’s name. As mentioned previously, one interesting feature of using ListViews/RecyclerViews is that we can click on a specific item in the list. Till now, when clicking on a specific item, nothing happens. In version 6, when clicking on a specific item, the name of the artist is displayed in a Toast.

Song Explorer v7

As you are probably guessing, displaying the name of the artist in a Toast is not very useful. In version 7, when clicking on an item in the list, we display more details about that particular artist (i.e. artist name, bio and tracks)on a different screen. To achieve this, the following needs to be done:

  • Create a new activity, ArtistDetailsActivity, and add it to the AndroidManifest.xml file
  • Update the onClick() in ArtistAdapter to start the new activity and pass in the artist id
  • Get the artist id in the new activity (ArtistDetailsActivity) and retrieve the corresponding artist name and bio from the database and display those in two respective TextViews
  • Retrieve the list of tracks for that particular artist from the database
  • Create a RecyclerView and a corresponding TrackAdapter to display the list of tracks for the artist

20150820-song-explorer-v7

Song Explorer v7

The last enhancement to bring to the application is to allow the user to specify whether the list of artists should be sorted by the artist id or by the artist name. The next time the application starts, the list should be displayed in the chosen order. To do that, a preference screen should be created using the XML editor, then a class (SettingsActivity) derived from PreferenceActivity should be created and the onCreate method overriden. This new activity should be manually added to AndroidManifest.xml.

When this activity is launched (using, for example, startActivity), the Android framework will automatically store the preferences.

Here, the preference screen will be launched when the user select settings in the menu which can be accessed through the bar at the top (also known as the action bar). To do this, startActivity() should be called accordingly in the onOptionsItemSelected() method in MainActivity.

You will notice that the preference screen doesn’t have the action bar at the top. This is because unlike MainActivity, SettingsActivity extends PreferenceActivity instead of AppCompatActivity. We will see later on what AppCompatActivity is all about and how to add an action bar to SettingsActivity too.

Finally, the application will have to be updated to display the list of artists in the appropriate order based on the user’s selection. The way to do that is to get a SharedPreference object from the PreferenceManager, retrieve the corresponding setting value and use the appropriate SQL statement when querying the database.

This topic is part of our Android Application Development training

Databases

This topic is part of our Android Application Development training

All Android devices have SQLite built-in and, consequently, Android applications can use this SQL database to store and manipulate data.

The SQLiteOpenHelper class needs to be derived and the two following methods implemented:

  • onCreate: Called when the database is created for the first time. This is where the creation of tables and the initial population of the tables should happen.
  • onUpgrade: Called when the database needs to be upgraded. The implementation should use this method to drop tables, add tables, or do anything else it needs to upgrade to the new schema version.

In addition to the two methods, the constructor also needs to be overrriden to indicate the database name as well as the version (starting at 1; if the database is older, onUpgrade will be used to upgrade the database).

Song Explorer v1

20150820-song-explorer-v1

The work to do is to implement the Song Explorer app which will make use of a database to store data about artists and tracks. In version 1 of the app, the artists table will be created and populated with data. There will be two buttons namely Show Artists and Show Tracks. On pressing the Show Artists button, a list of artists will be retrieved from the database and displayed on the screen. Pressing the Show Tracks button will initially provoke an error as the version 1 database only contains information about artists. Version 2 of the app will solve the issue.

Note that two methods of the SQLiteDatabase class are useful here:

  • execSQL: for executing inserts, updates and deletes
  • rawQuery: for executing an SQL query and returning a Cursor object

Song Explorer v2

In version 2 of the Song Explorer app, we add a new table called tracks and populate it with some data. Since we are changing the database schema, we have to change the database version number and implement the onUpgrade method accordingly. Now, pressing the Show Tracks button displays a list of tracks.

Song Explorer v3

20150820-song-explorer-v3

In version 3, we add two new buttons. The first one allows us to change the letters of the artists’ names to uppercase and the second one allows us to change the names to lowercase. While in the two previous versions we were concerned only with retrieving data, here we have to update data.

This topic is part of our Android Application Development training

Linux has won and you should not wait too long

20150818-aventador

Top500 is a website which lists and describes the most powerful supercomputers on the planet. 97% of them run Linux. The majority of mobile devices on the planet run Android, a Linux distribution. The cloud is powered by Linux including the Google and Amazon cloud services. More and more appliances are now powered by Linux, including typical ADSL modems, firewalls and TVs. I am not even mentioning the myriad of IoT devices. Even without those, there are more devices running Linux on the planet than devices running Windows…

Not bad at all, hehe, for an operating system created twenty years ago by a young guy still at university.

Linux has won. And this is just the beginning.

It is important for all of us to know how to use Linux. It is a question of staying relevant.

Building a user interface

This topic is part of our Android Application Development training

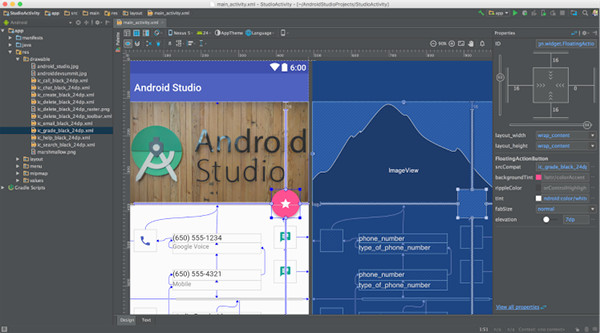

Android Studio allows us to design user interfaces in two ways. The first one is via the powerful Designer Tool which features a drag and drop interface and very complete object inspectors as well as the possibility to immediately preview any changes. The second one involves directly modifying the actual XML files. With Android Studio, one can easily switch between the two.

The basic building block for user interfaces in Android is a View object which is created from the View class. The visual structure of a user interface is generally defined using layouts which are subclasses of the View class. The most commonly used layouts are Linear Layout, Relative Layout and Frame Layout. Other objects such as a TextView, a Button and a Spinner among others are then placed within the layout. The position of those objects within the layout will depend on the type of layout used and on the different attributes of the objects.

A word on the spinner
The spinner is often called a drop-down in other environments. Two examples are shown below (From and To). When clicked on, a pop-up appears and this allows the user to select one of the items. The data source for a spinner is flexible and requires an adapter to work. Android has a number of adapters built-in but one which is simple to use is the ArrayAdapter.

20150817 ForexWithStyle

Forex
The first application to develop is one which allows the user to convert among different currencies. The user chooses the currency to convert from and the currency to convert to using two different spinners, then enters the amount in an EditView and finally presses the ‘Convert’ button to get the result. For this user interface, a vertical Linear Layout is used to display the different objects mentioned above one below another.

ForexWithStyle
Now that we have our Forex app working, we want to make it look nicer. In Android, themes and styles are used to override the default look and feel of an application. Styles are just like CSS in web design. A theme is simply a collection of styles.

When building an app, styles are generally defined in /src/main/res/values/styles.xml. In ForexWithStyle we’ll apply the Material Design theme to the Forex app and simply modify some theme based colors which are usually used for branding.

However, some new Material Design XML attributes have been introduced in Android 5.0 (Lollipop). We thus have to make sure that we maintain compatibility with previous versions of Android. We will thus have two styles.xml files. One found in /src/main/res/values/ and another one found in /src/main/res/values-21/. The latter will be used by devices running Android 5.0 (API 21) and above and the former by devices running previous versions of Android.

This topic is part of our Android Application Development training
